LoRaWAN Signal Tester

Description

is a signal quality tester based on the standard LoRaWAN protocol, equipped with GPS positioning capabilities. It is primarily used to test the LoRa network signal strength at construction sites. It can test the packet loss rate for both uplink and downlink, as well as the Received Signal Strength Indicator (RSSI) and Signal-to-Noise Ratio (SNR), thereby facilitating the analysis and assessment of the LoRa network signal coverage at construction sites.

     Features

Ø  Supports the standard LoRaWAN protocol;

Ø  Supports globally open frequency bands：CN470MHz~510MHz、EU863MHz~870MHz、US 902MHz~928MHz、AU915~928MHz、AS923MHz；

Ø   GPS positioning accuracy within 5M;

Ø   Built-in 3500mAh rechargeable battery, supports up to 36 hours of system operation;

Ø   Built-in LCD screen;

Ø   Wide working temperature range: - 10℃ to + 50℃;

Ø  Supports real-time communication with the gateway to obtain RSSI and SNR transmitted by the gateway;

Ø   Support statistics of packet loss rate of communication between gateway and nodes.

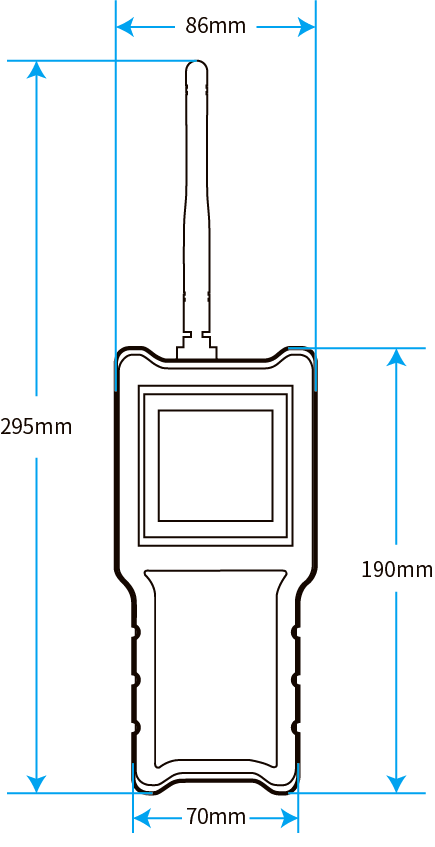

Product image:

Product application:

Ø  Smart city communication management system

Ø   Smart community communication management system

Ø  Smart Agriculture communication system

Ø  Smart transportation communication system

parameter
