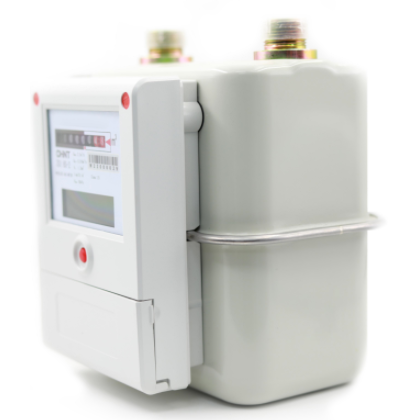

LoRaWAN DIAPHRAGM GAS METER

Up to 5Km communication range in open environment;LCD Screen indicates reading, power percentage, allowance, valve and signal status.;Long-lasting battery life of up to 3 years;Capable of saving over 10,000+ historical operation records locally;Compatible with standard LoRaWAN® gateways and third-party network server platforms;Fast connection with HKT LoRaWAN® gateway and cloud platform without additional configuration

LoRaWAN DIAPHRAGM GAS METER

The Diaphragm Gas Meter is suitable for various types of gas users, including residential, commercial, and industrial customers. It is widely used in homes, commercial buildings, and large factories, helping users and gas companies to achieve scientific gas usage, resource optimization, and cost control. Users can view real-time gas consumption and historical records through mobile applications or website, making it convenient to understand their gas usage and optimize their gas usage plans. Meanwhile, a remote management platform can be provided for gas companies to statistically analyze the gas usage of each customer, in order to better formulate gas supply strategies and energy-saving measures.

The rotary distribution structure is adopted, which runs smoothly, overcomes the defects of reciprocating distribution structure and enhances the measurement reliability;

The rotation is stable and never leaks, thus ensuring the safety performance of the product; The rotation of the movement transmission mechanism is transmitted to the counter outside the shell through magnetic force, ensuring accurate measurement, stable performance and good consistency of repeated detection; The internal control indication error index is ± 1%, which can ensure that the detection in different regions can be qualified;

The surface of the shell is treated with plastic spraying, which has bright color, beautiful appearance and good corrosion resistance. It is designed with a variety of structures and devices to prevent external interference and damage.

Features of Domestic Membrane Gas Meter with Steel Casing

  • High measurement accuracy. The movement redesigns the rotating volume, and the difference between the diaphragm volume and the standard volume is less than 10%, so the change of the rotating volume will be very small within the size error range of each part, improve the accuracy of measurement;
  • High stability and good consistency of repeat detection. Unique diaphragm limit and forced diaphragm turnover device is adopt.The limit of each movement of the diaphragm is at the same position, so that each movement of the diaphragm is filled with the same amount of gas, even after multiple movements and testing, the error of multiple detection is greatly reduced, and the stability of the meter and the consistency of repeated detection are improved;
  • Good durability. The low-temperature diaphragm is adopted, and has very good softness, and will not deform after multiple operations, so that the rotation volume will not change too much, and the durability of the meter is greatly improved.



HKT provides customized services:

  • ODM
  • Pre-sales & After-sales Services
  • Technology Support


Product Specifications

Parameters Description
The performance parameters G1.6 G2.5 G4
Minimum flow 0.016M³/h 0.025M³/h 0.04M³/h
Startup flow ≤0.003M³/h ≤0.005M³/h ≤0.005M³/h
Maximum flow 2.5M³/h 4M³/h 6M³/h
Cyclotron volume (Vc) 1.2dm3
Maximum allowable error (0.1qmax≤q≤qmax)±1.5%
(qmin≤q≤0.1qmax)±3%
Maximum working pressure ≤50kPa
Pressure loss ≤200kPa
Sealing 75 kPa hold pressure for 3 minutes without leakage
Durability Run for 2000 hours,meet the above performance indicators
Ambient Temperature Range -10°~40°
Center distance of meter joint 130mm
Joint Screw M30*2mm
External connection screw thread DN15
Outline Dimensions (L*B*H) 203mm x 130mm x 225mm
Weight 2kg
Ingress Protection IP54
Installation 3M glue fixed or screw fixed or screw fixed wall mounting
Communication  Standard LoRaWAN Protocol





Name Quantity
Membrane gas meter 1
Coupling,sealing washer (optional) 2
